Underground truck hydraulic pumps overload test Pv22 Mv23
Quick Detail:
· Cast iron housing
· Hydraulic components
· Model PV22+MV23
· Hydraulic system power components
· Principle hydraulic transmission
· Features lifetime technical support
· Simple layout
· System Solutions
· Work fast
· Fully replace imported products
· Patent certificate certification
· Application pharmaceutical machinery underground truck hydraulic pumps
· 1 year warranty
Description:
Underground truck hydraulic pumps are critical components of the mining industry. These pumps are responsible for powering the hydraulic systems in underground trucks, which are used to transport materials and personnel in and out of underground mines. The hydraulic pumps enable the trucks to lift and lower heavy loads, as well as to operate other key functions such as steering and braking.
Due to the demanding and harsh conditions of underground mining, the hydraulic pumps used in underground trucks must be highly reliable, durable, and resistant to wear and tear. They must also be designed to operate safely in potentially hazardous environments, where explosive gases and dust are present.
PV22+MV23 Technical parameter:
| PV22 hydraulic pump and MV23 hydraulic motor series | PV22 | MV23 |
| Displacement | Max displacement | ml/r | 69.8 | 89 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3200 | 3200 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 342.6 | 432.9 |
| Max output torque | Nm | 480 | 606 |
| Power | Continuous output power | KW | 107 | 139 |
| Max power | KW | 114 | 150 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| weight | PV series hydraulic pump hydraulic oil drain | kg | 62 | |
| PV series hydraulic motor hydraulic oil drain | kg | | 66 |
Notices:
Safety precautions: Observe all safety precautions when operating hydraulic pumps and mining machinery. This includes using personal protective equipment, following safe operating procedures, and avoiding working near moving machinery.
Proper installation of the hydraulic pump: Ensure proper installation of the hydraulic pump by qualified professionals to avoid misuse or accidents.
Check the pressure: Maintain the pressure within safe limits as per the manufacturer’s guidelines to ensure safety and avoid accidental damages to the pump.
Conduct regular inspections: Conduct regular inspections of the hydraulic pump to check for worn-out parts, cracks, or damage to any components.
Ensure safety measures: Ensure safety measures are in place while working with the hydraulic pump, such as providing safety goggles, gloves, and other protective gear.
Do not exceed the load capacity: Do not exceed the load capacity for the hydraulic pump as it could lead to severe damage to the pump or accidents.
Adequate training: Adequate training of personnel handling the hydraulic pump should be provided, including knowledge of emergency procedures, troubleshooting, and maintenance.
FAQ
Q1. Can I have a sample order for pharmaceutical machinery underground truck hydraulic pumps?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for pharmaceutical machinery underground truck hydraulic pumps?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for pharmaceutical machinery underground truck hydraulic pumps ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
Product Tags:
|
|

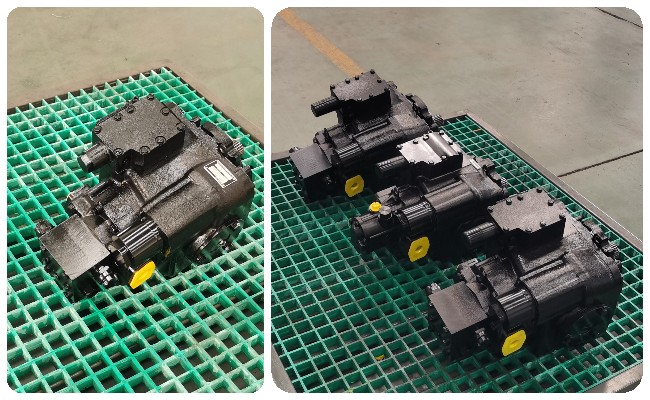

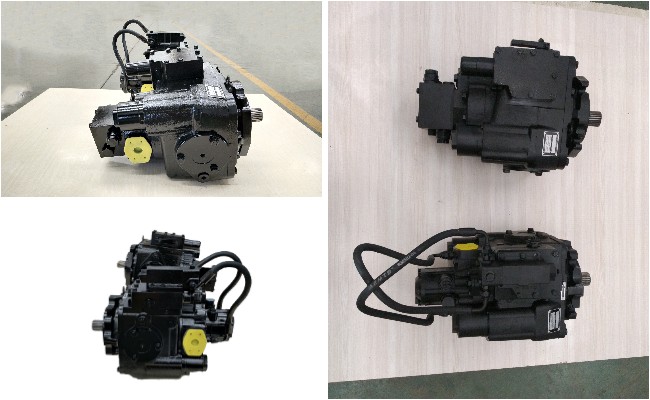

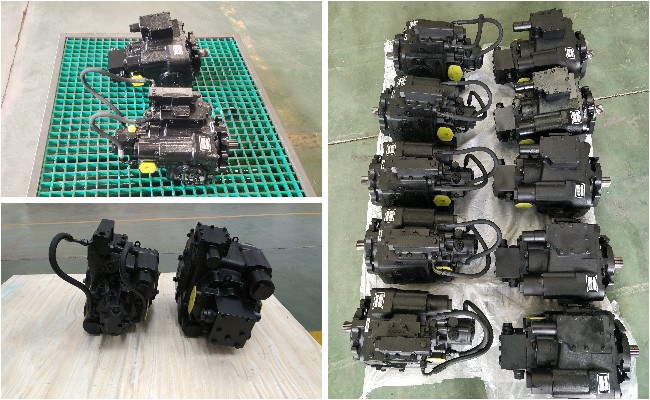

Cast Iron Underground Truck Hydraulic Pumps Overload Test Pv22 Mv23 Images
|
