Highland PV22 transit mixer hydraulic pumps axial flow piston
Transit mixer hydraulic pumps based introduction:
The function of transit mixer hydraulic pump is to convert the mechanical energy of power machine into the pressure energy of liquid. The output flow can be adjusted according to need is called variable displacement hydraulic pump, the flow can not be adjusted is called fixed displacement hydraulic pump. Our transit mixer hydraulic pump is variable displacement axial flow piston pump.
Axial flow piston pumps performance:
- Axial flow piston pumps with very long service life.
- Axial flow piston pumps with Low operating noise.
- Flow direction changes when the swash plate is moved through the neutral position
- Piston pumps have strong load capacity of axial drive shaft.
- Control lever with short response times.
- Axial flow piston pumps swash plate design.
PV22 Axial flow piston pumps technical specifications:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 |
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| Weight | PV series hydraulic pump hydraulic oil emptying | kg | 45 | 53 | 63 | 78 |
| MF series hydraulic motor hydraulic oil emptying | kg | 30 | 34 | 40 | 47 |
Highland service for transit mixer hydraulic pump:
Quick response within 24 hours.
Provide technical guidance.
Help customer solve hydraulic confusion.
Excellent after-sale service.
100% factory testing before shipment.
Preferential factory price, short delivery time.
FAQ for axial flow piston pumps:
1. Are you a manufacturer or Trader ?
We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
2. What is your payment term ?
We accept T/T, Western Union etc.
3. How long is the validity of quotation ?
Generally, our price is valid within 7 working days from the date of quotation.The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market.
4. What is your delivery time ?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time depend on the order quantity.
Tags: transit mixer hydraulic pump, PV22 hydraulic pumps, axial flow piston pumps
Product Tags:
|
|

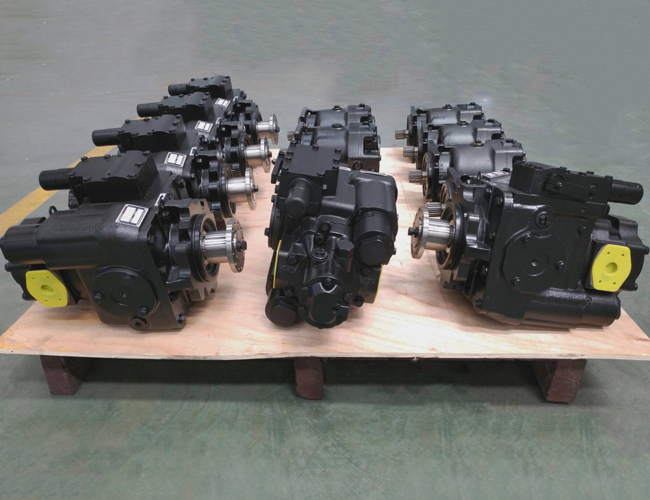

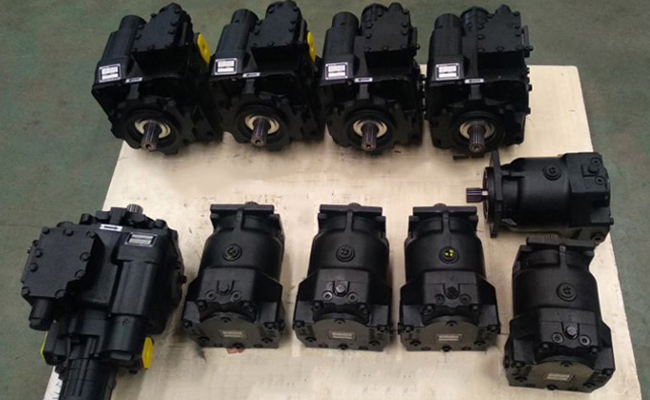

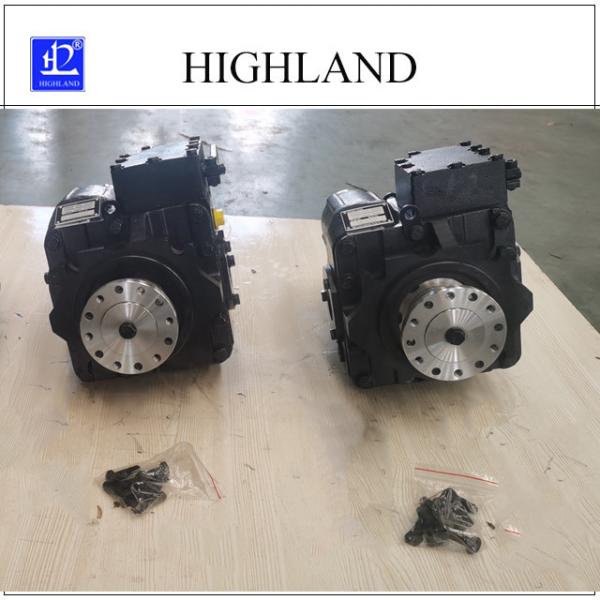

Pv22 Transit Mixer Hydraulic Pump Axial Flow Piston Images
|
